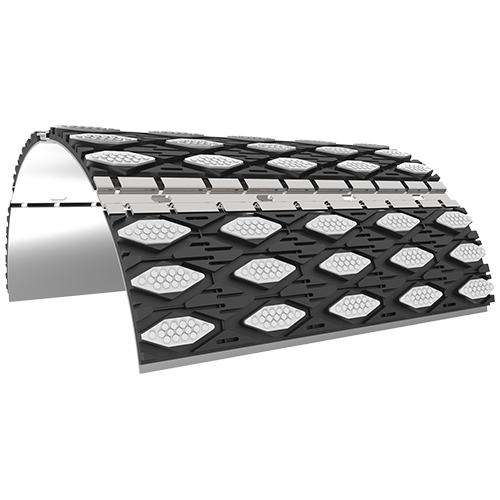

It is suitable forpulley lagging of long-distance and high-speed belt conveying equipment. It has good anti-slip ability, and prolongs equipment startup time by reducing the replacement frequency and replacement time of lagging.
1. Installation is more convenient and faster, and the replacement saves 50% of labor；
2. It will not hurt the non-working surface of the conveyor belt, which is more friendly to the conveyor belt；
3. Provide >30000 hours service life under normal working conditions；
4. Suitable for conveyor belt slippage, muddy, belt speed ≥ 3m/s, conveying capacity 1500t/h；
5. Safer hot vulcanization bonding process.
| Ceramic Tiles | |
| AlO,Content | 92%,95% |
| Volume Density | >3.5 g/cm3 |
| Tensile strength | 20 Mpa |
| Compressive Strength | 200 Mpa |
| Hardness (Mohs) | >9t |
| Water Absorption | <0.02 |
| Abrasion | <120 mm |
| Rubber | |
| Polymer | NR/SBR |
| Specific Gravity | 1.2+/-0.03 |
| Shore a (hardness ) | 65+/-5 |
| Elongation at break | 400% |
| Tensile strength. | 17 N/mm² |
| Abrasion Loss | <120mm |
| --- | --- |
| Commodity | Thickness.mm | Width.mm | Length.mm |
| Normal Ceramic Lagging | 12 / 15 / 18 / 20 | 500 | Customized |
| Flame Retardant Ceramic Lagging | 12 / 15 / 18 / 20 | 500 | Customized |
